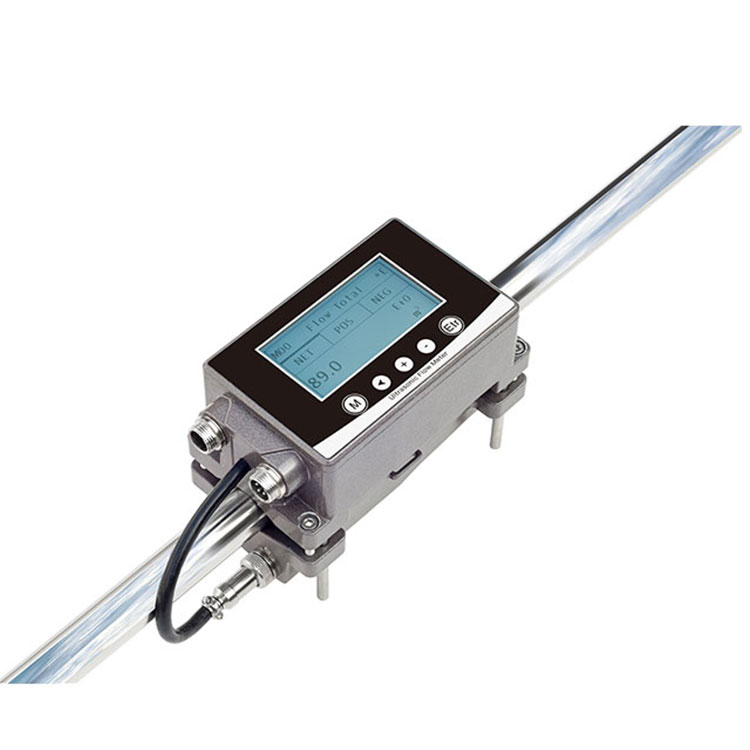

BQF606 Clamp On Type- Small Pipe Size Ultrasonic flow meter

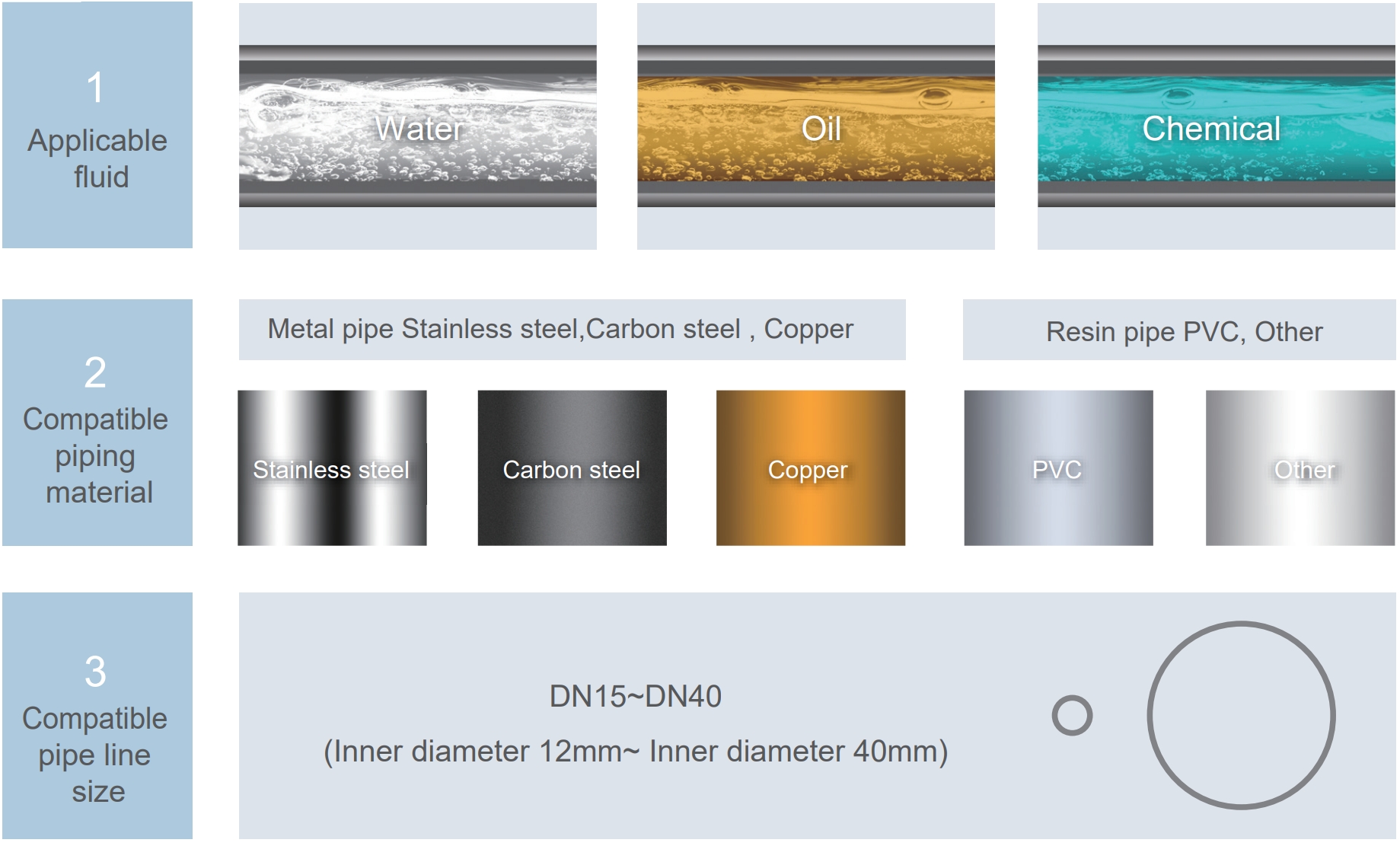

| Pipe material |
Metal /PVC, PP or PVDF rigid plastic pipe |
|
Liquid type |
Water/other liquid (Single liquid medium without solid particles or impurities) |
|
Temperature range |
0-75℃ (No freezing on the surface) |
|
Low velocity cut off value (Default by factory) |
0.1m/s |
|

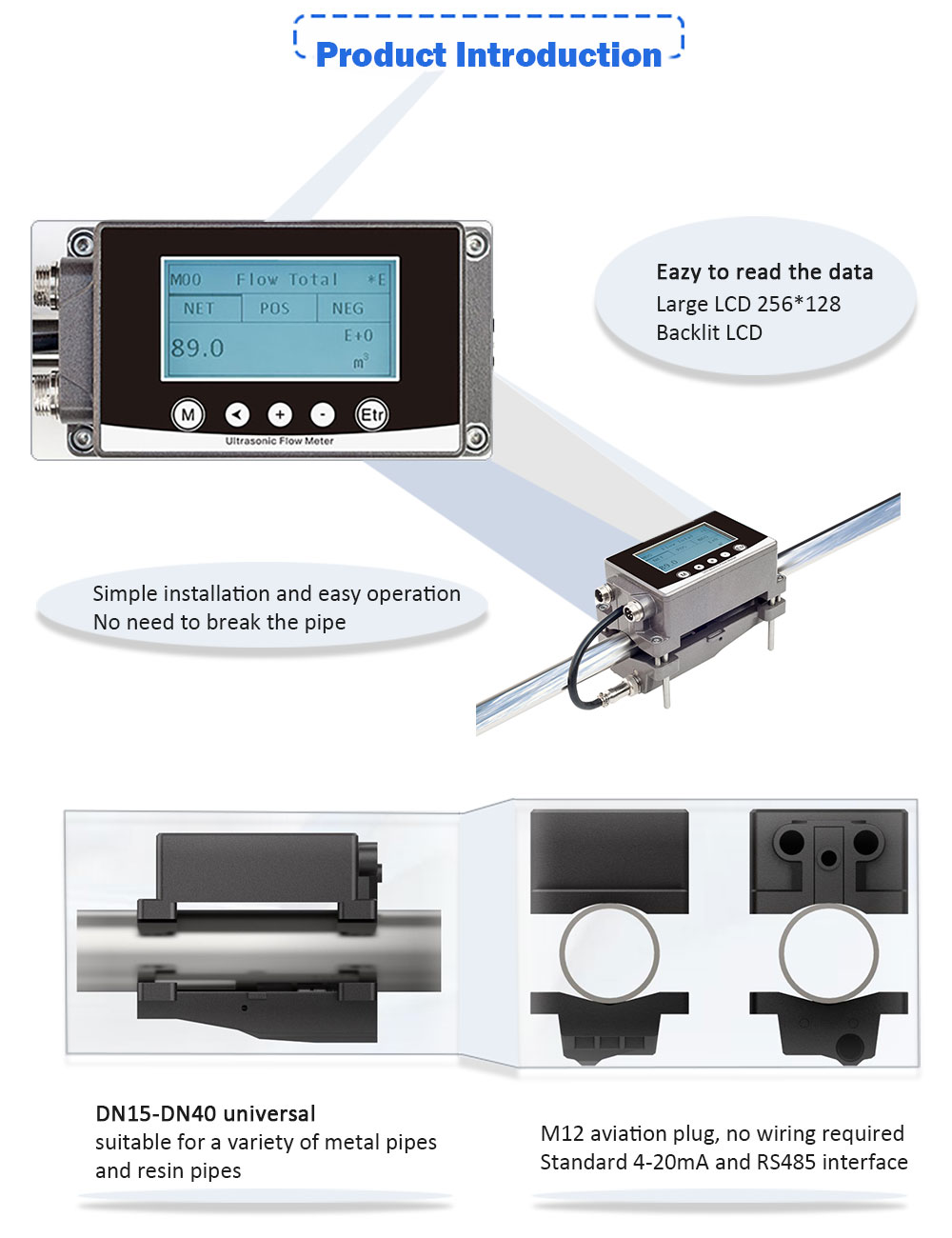

Display |
256*128, LCD |
|
Response time |
0.5-60s |
|
Accuracy |
±2%, (±1% after calibration) |
|
Data Storage period |
300ms |
|
Memory for data backup |
EEPROM (Data storage: over 10 years, data read/write frequency: over 1 million times) |
|
Power and I /O connection |
M12 type aviation plug |
|
Output |
4-20mA |
|
Communication |
Modbus RS485 |
|
Options for output |
OCT (pulse output)/ One relay alarm (please contact the factory) |
|
Power supply |
10-24V VDC |
|
Electric power |
<3W |
|
Protective circuit |
Power reverse connection protection, Power surge protection |
|
Output short circuit protection, Output surge protection |
|
|
Enclosure protection class |
IP65 |
|
Environment temperature |
-10 to 60°C (No freezing) |
|
Relative humidity |
35 to 85% RH (No condensation) |
|
Vibration resistance |
10 to 55Hz |
|
double amplitude 1.5 mm, 2 hours in each XYZ axis |
|
|
Impact resistant |
100 m/s2 16 ms pulse, 1000 times each for X, Y and Z axis |
|
Main material |
Aluminum, Industrial Plastics |
|
Cable length |

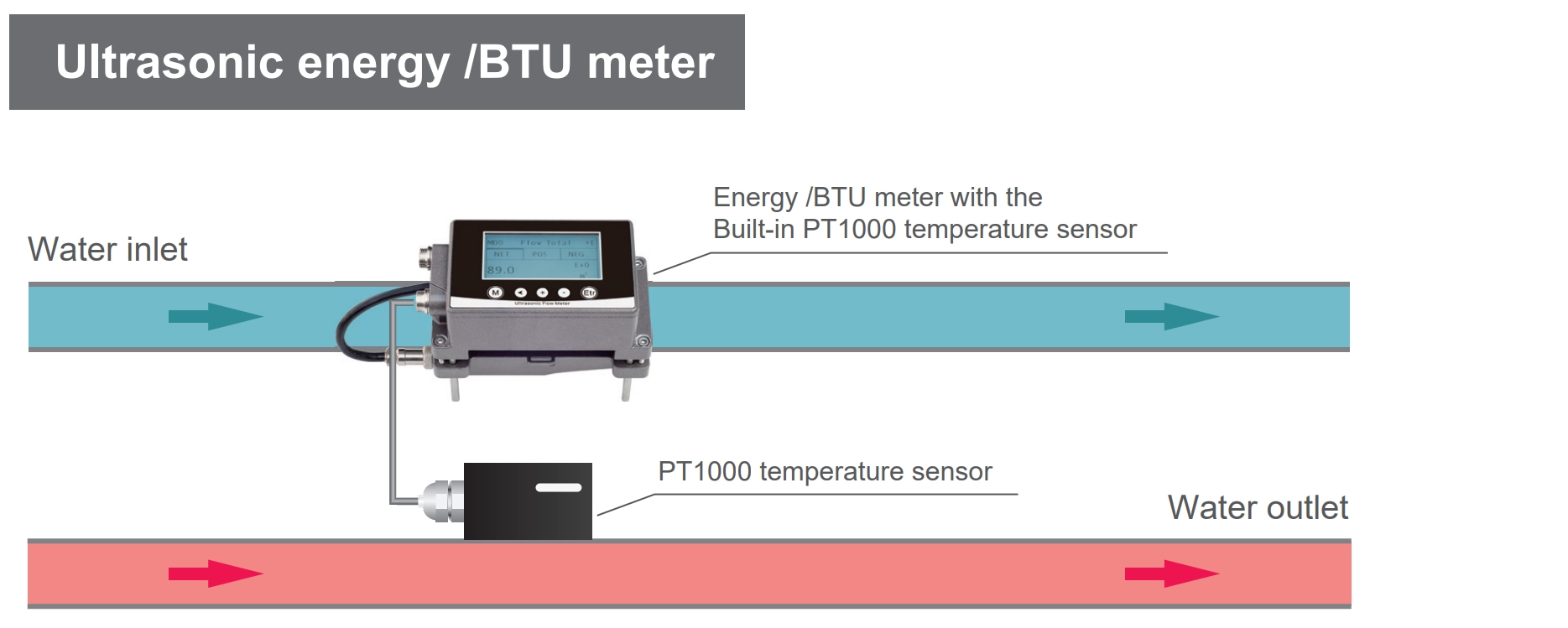

2m(standard ), PT1000 sensor standard cable length is 9m |
