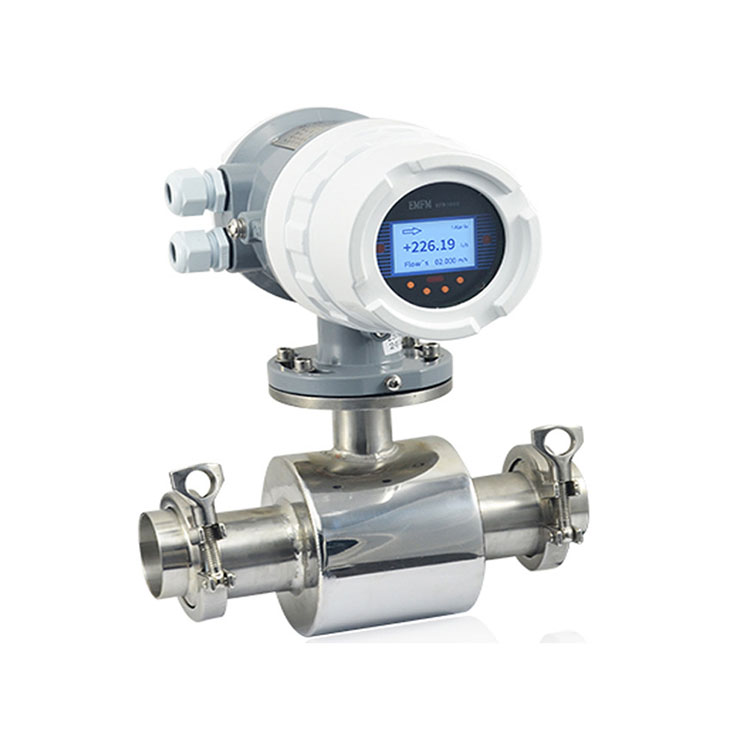

BME400 Series Electromagnetic Flowmeter

Medium

water; wastewater; Mud and various kinds of conductivity liquid

Diameter

DN10~DN2000mm

Accuracy

0.5% F.S

Temperature

<80℃(rubber); <180℃(PTFE)

Pressure

4.0Mpa(DN10~80);1.6Mpa(DN100~150);1.0Mpa(DN200~1000);0.6Mpa(DN1200~2000)

Flow speed

0.3~10m/s

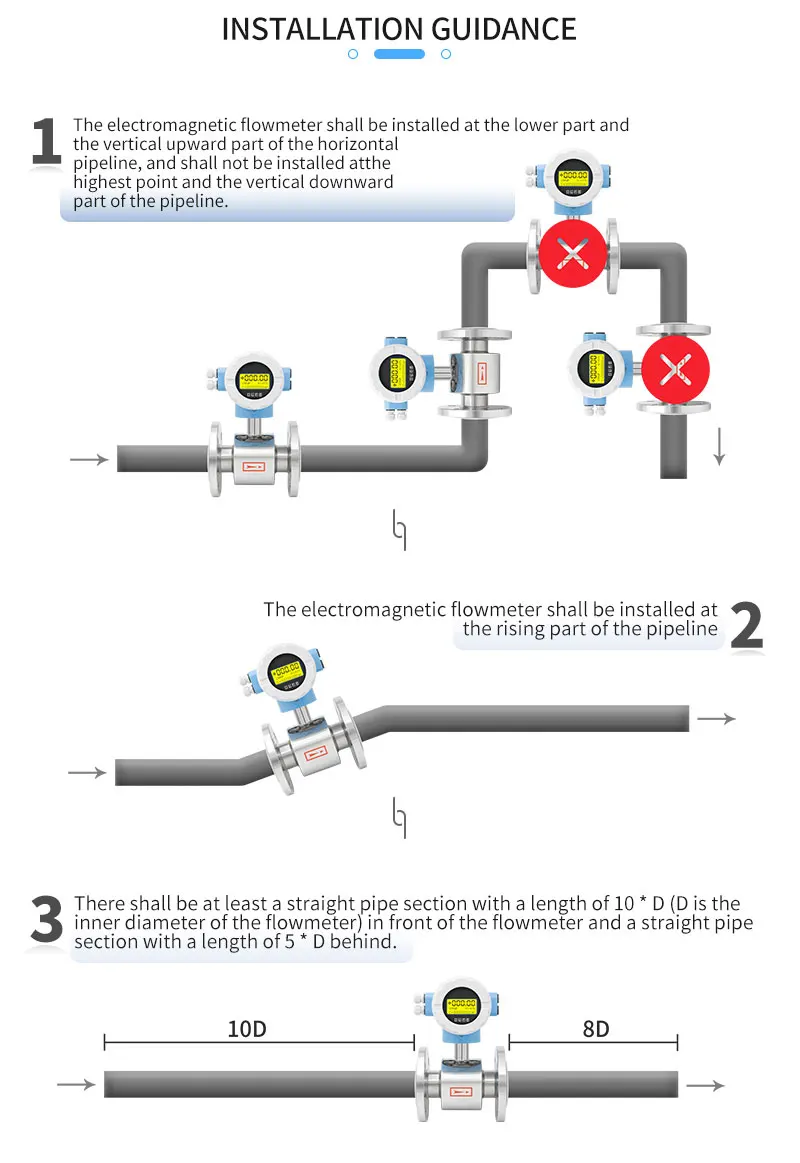

Requirement of pipeline

Upstream ≥5DN; Downstream≤3DN

Electrode

Stainless steel 316L(standard); Titanium; Tantalum; Hastelloy

Lining

PTFE, Rubber, FEP

Connection

Flange; thread; clamp on

Body material

Cast steel; stainless steel

Power supply

220V;24V; Battery

Output

Pulse;4~20mA; HART; RS485; MODBUS; GPRS

Communication

HART; RS485; MODBUS

Explosion proof

Customized

Protection

IP65 or IP68

Environment

Environment:-20~60℃
