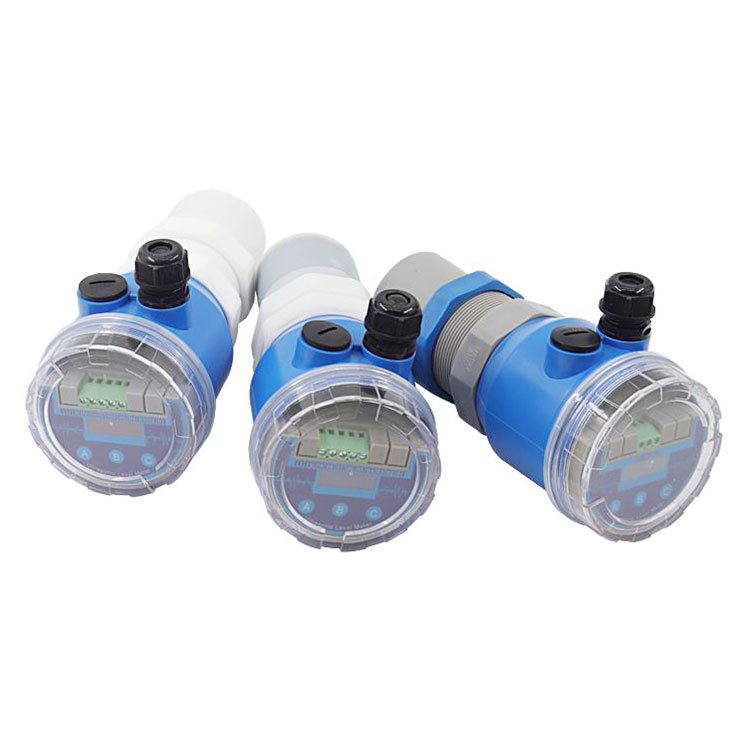

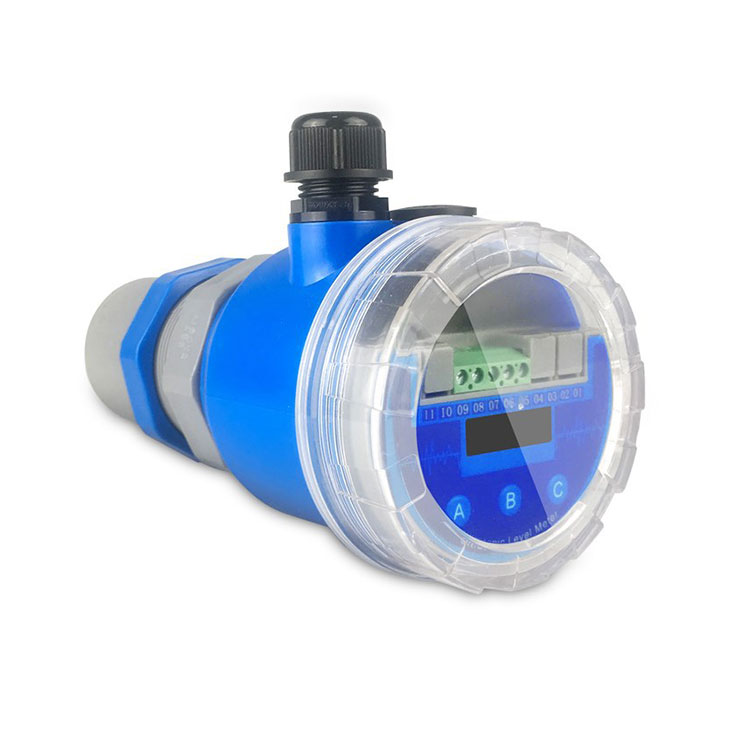

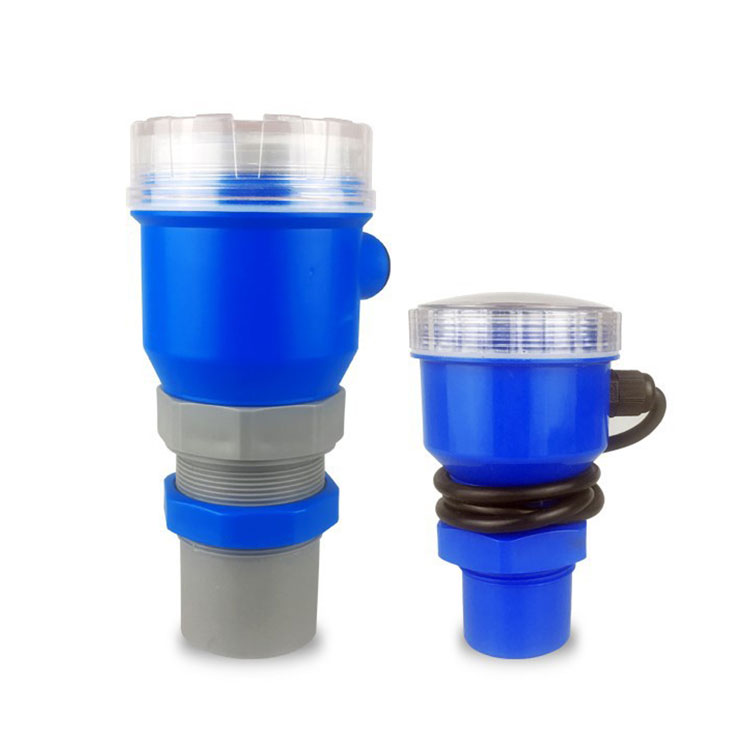

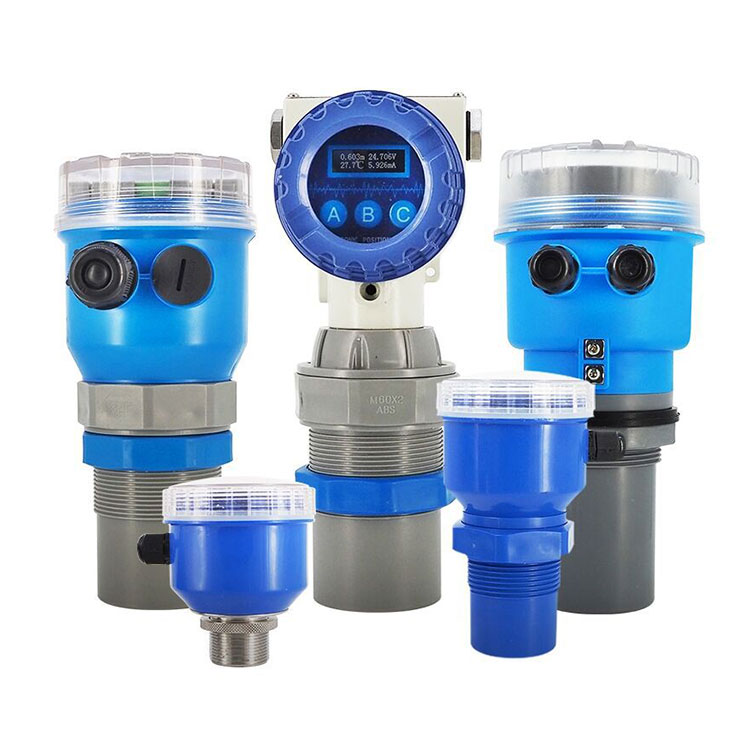

BAU5000 Ultrasonic Level Meter

Range

5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m

Blind area

<0.4-1.5m (according to different range)

Beam angle

<12°

Accuracy

±0.25%F.S

Output

Analog signal

Digital signal

Switch signal

4~20mA, 0~20mA
4~20mA, Load>300Ω
0~5V, 0~10V

RS485 that support Modbus

NPN (with PP pulse output option) Relay (AC:5A/250V DC:10A/24V)

Power supply

DC12-30V or AC220V

Consumption

<1.5W

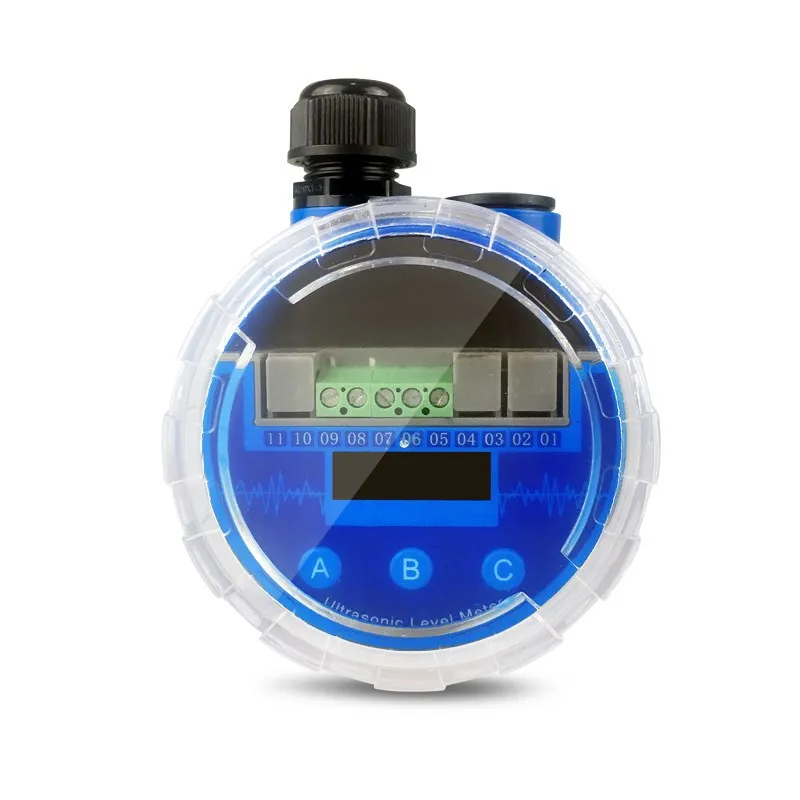

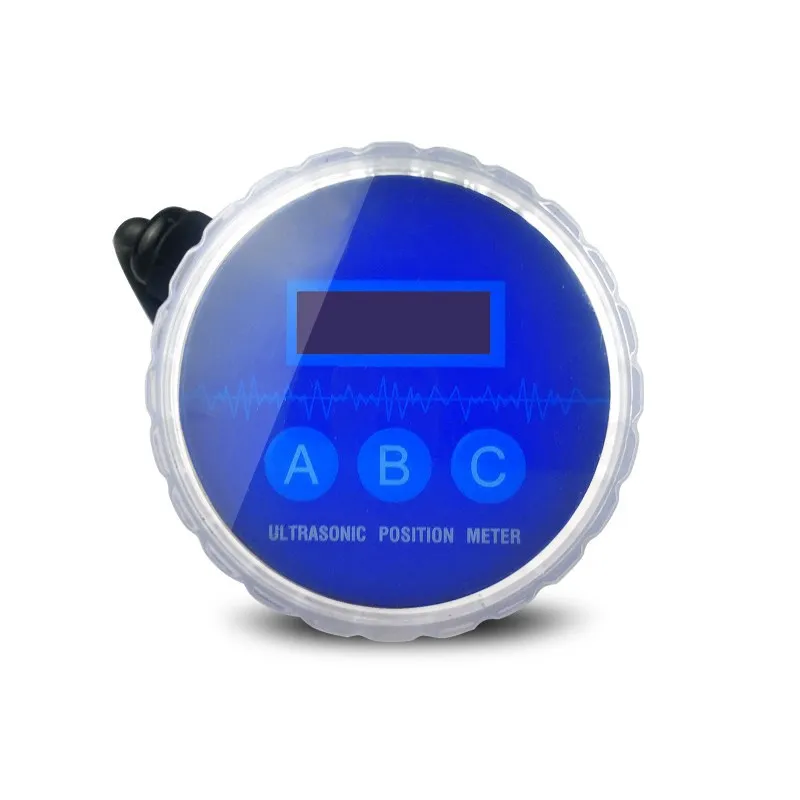

Display

4 bits 8 segment LED display (LCD option available)

Min. resolution

1mm

Frequency

20 KHz~43.0KHz

Protection class

Default IP65 (other options customizable)

Explosion proof

ExiaII BT4Gb

Operation temperature

-10°C~60°C

Housing

ABS/ Nylon

Cable

User defined (with connectors)

Dimension

Φ92mm x 198mm x M60 (5m-15m range)
Φ92mm x 270mm x DN80 nonstandard flange (20m-30m range)
Φ92mm x 270mm x DN80 nonstandard flange (20m-30m range)

Installation

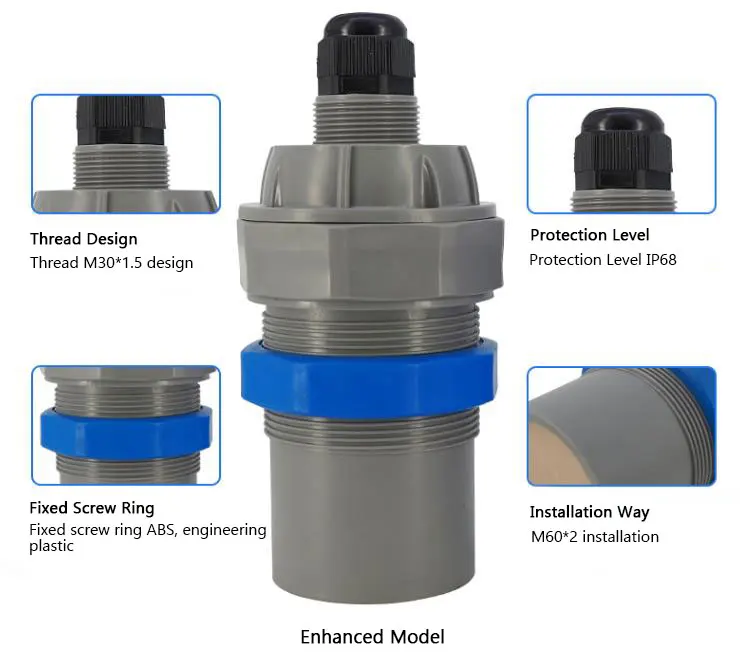

M60 x 2 or Φ61mm hole with gasket (5m-15m range)
DN80 nonstandard flange (20m-30m range)

Electrical connection

M20 x 1.5 (two units)
