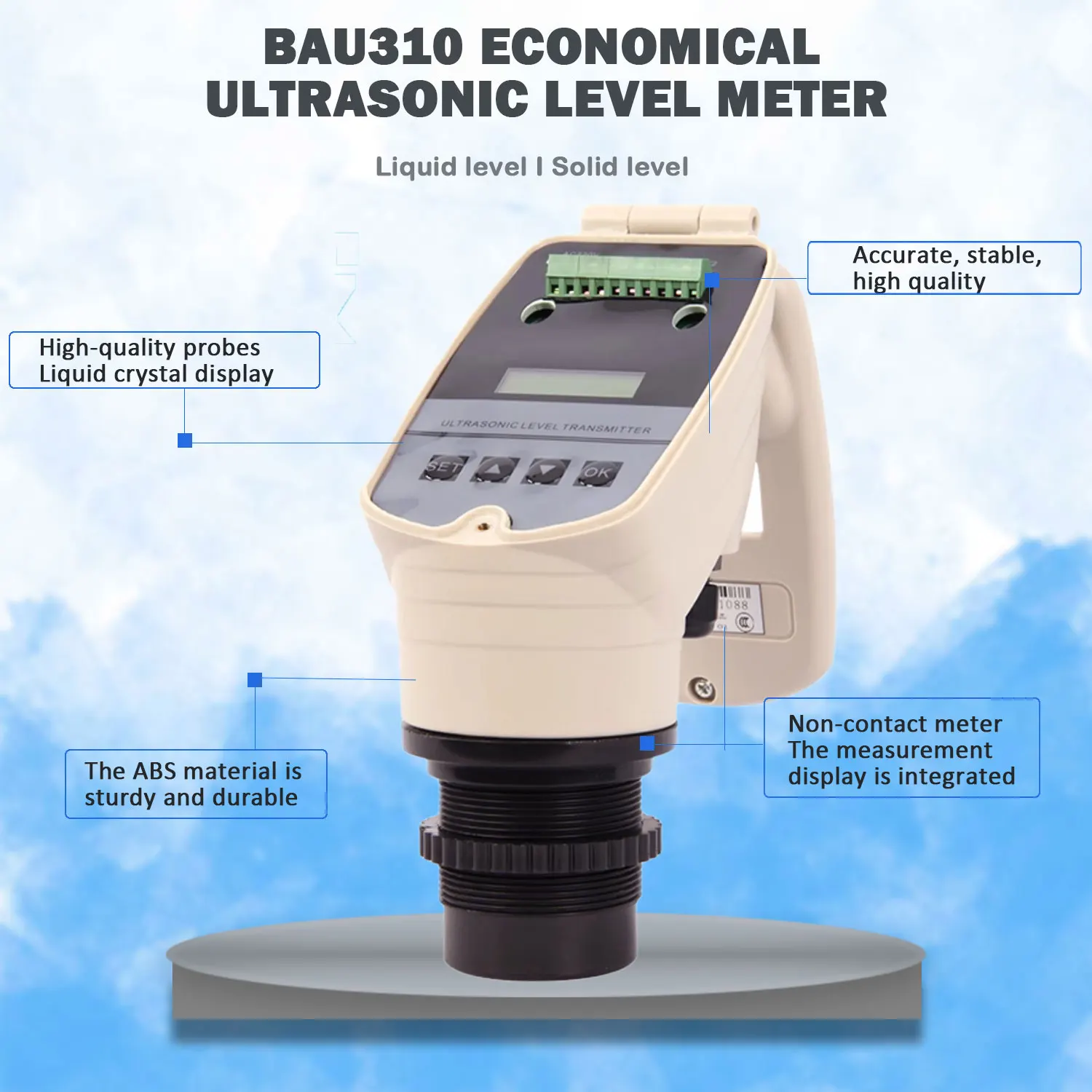

BAU310 Basic Ultrasonic Level Meter
Product Paramenters
|
ITEMS |
DATA |
|
Product Name |
Integrated ultrasonic level gauge |
|
Product range |
0-15m |
|
Measurement accuracy |
0.3% |
|
Resolution |
1mm |
|
Power supply voltage |
standard DC24V, optional AC220V |
|
Ambient temperature |
-20-60 ° C |
|
Protection level |
IP65 |
|
Installation method |
flange |
|
Analog output |
4-20mA |
|
Digital output |
RS485; Modbus protocol (or customization protocol) |

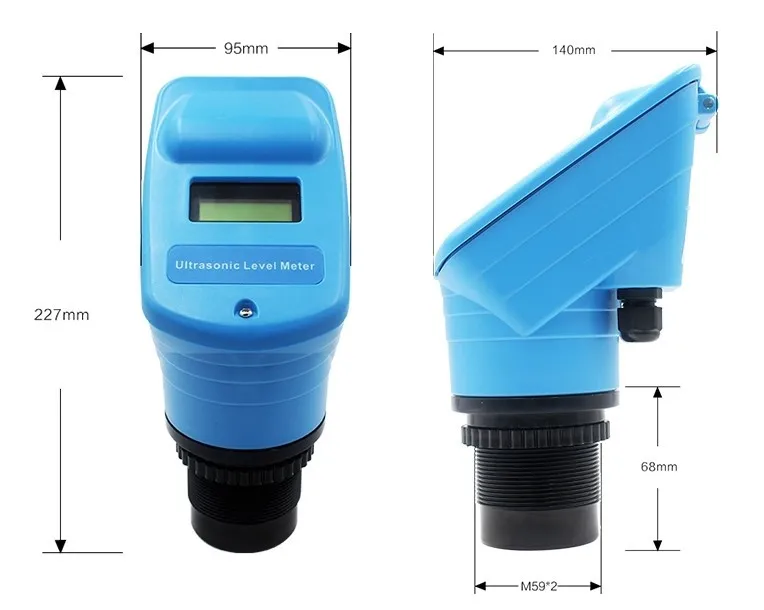

Dimension

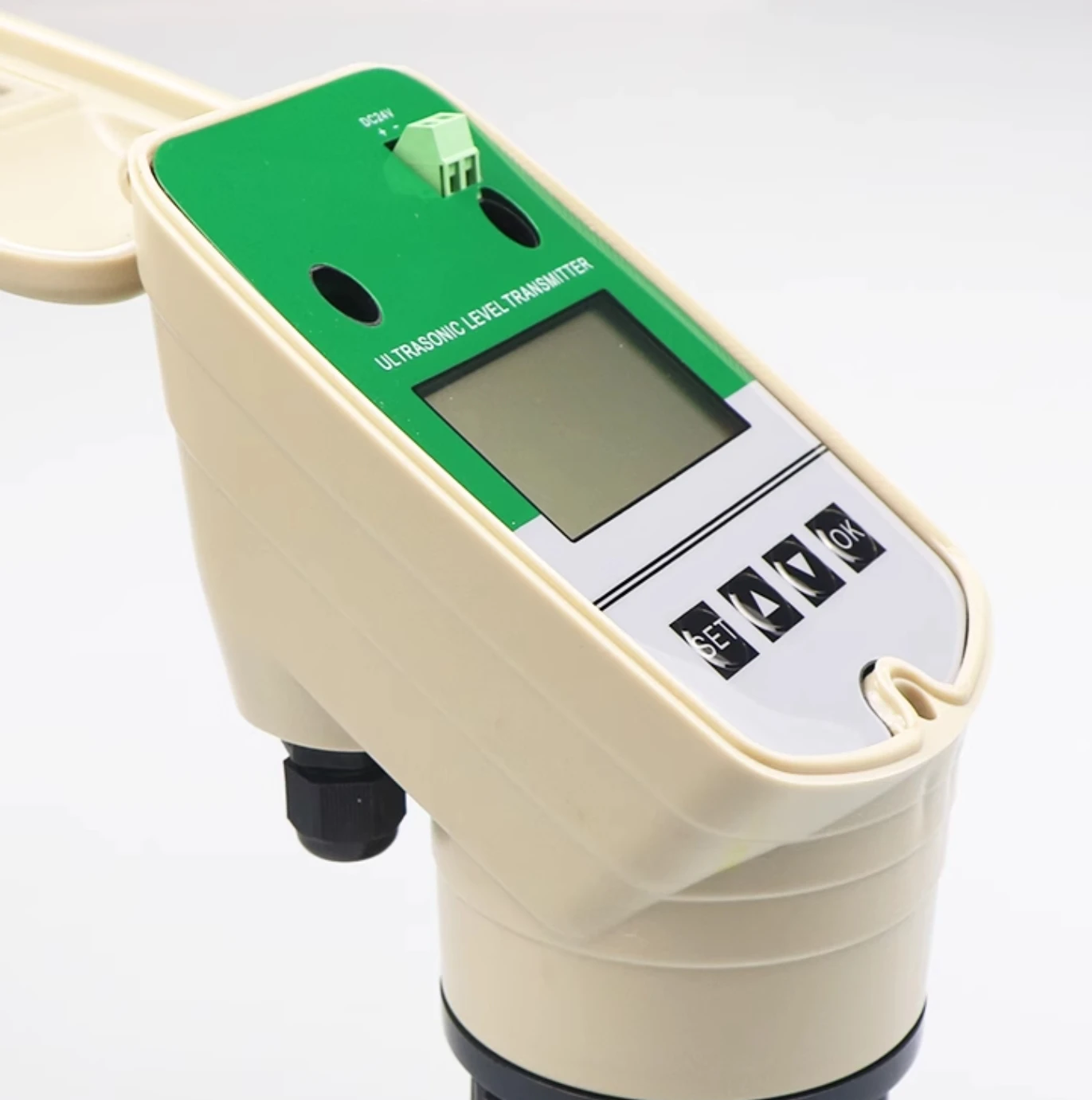

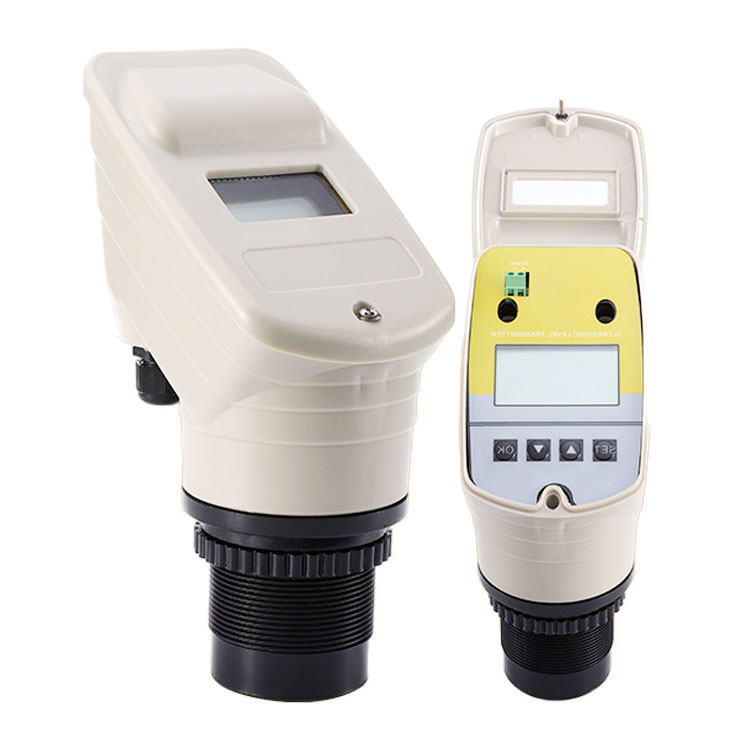

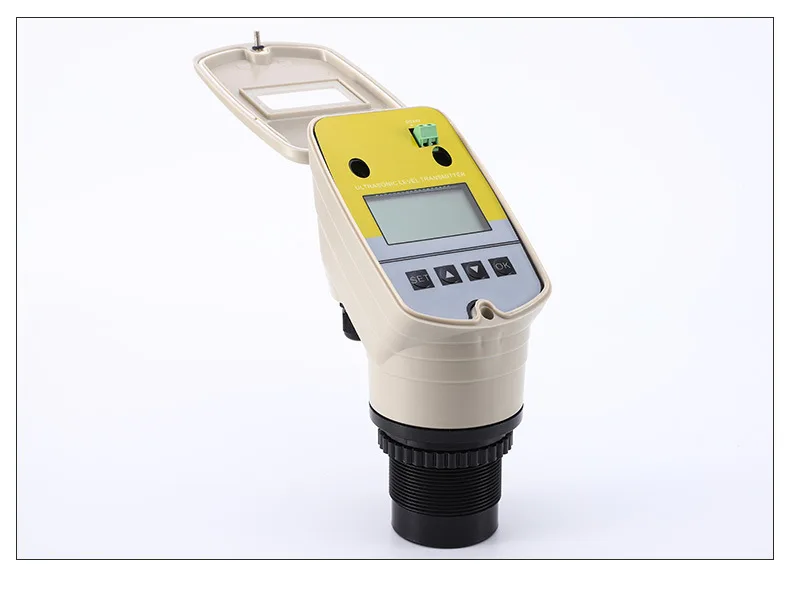

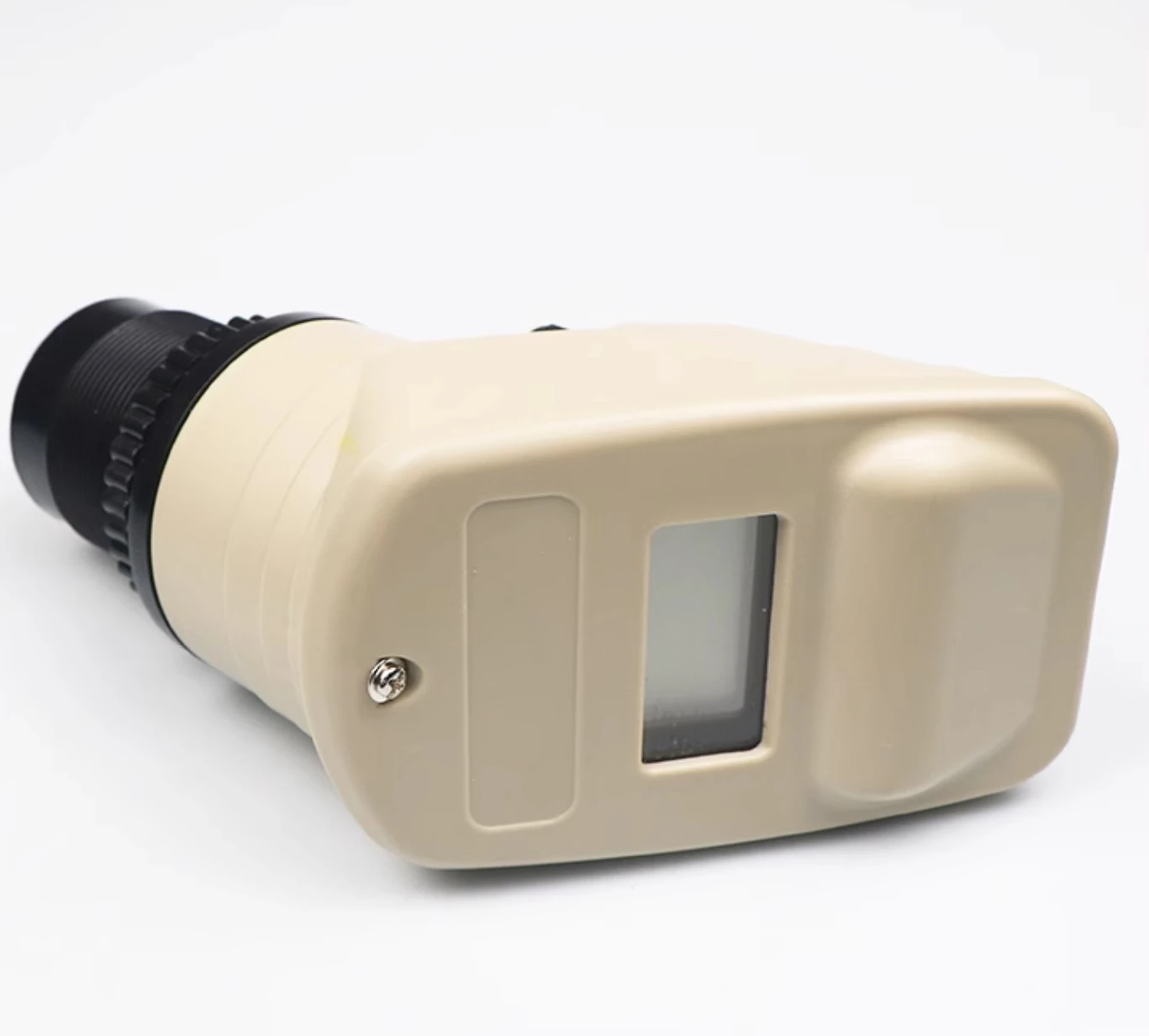

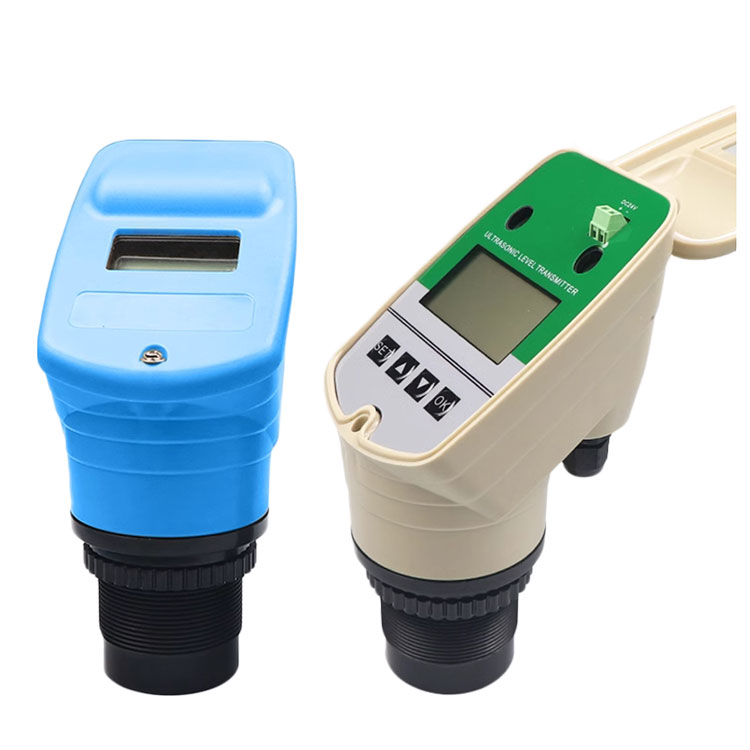

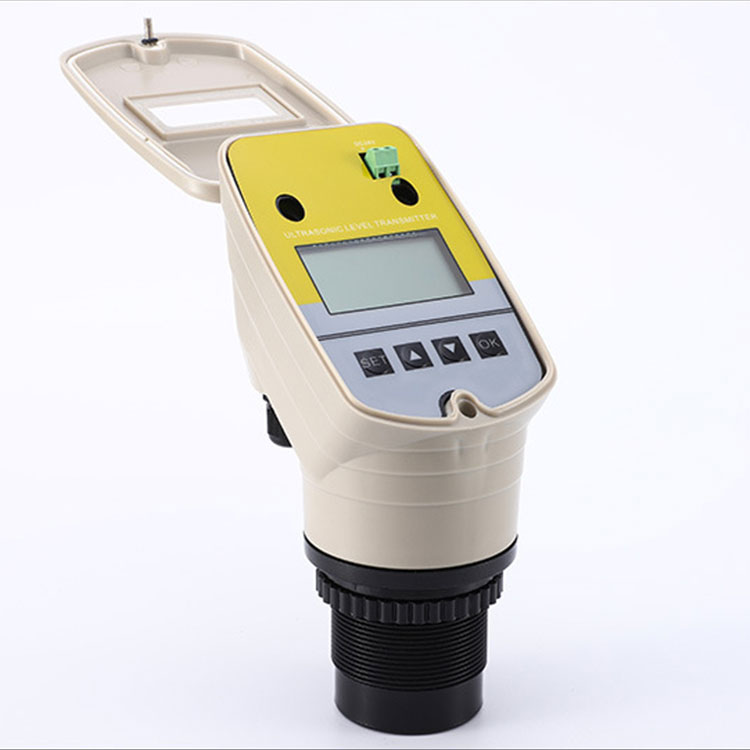

Details Images

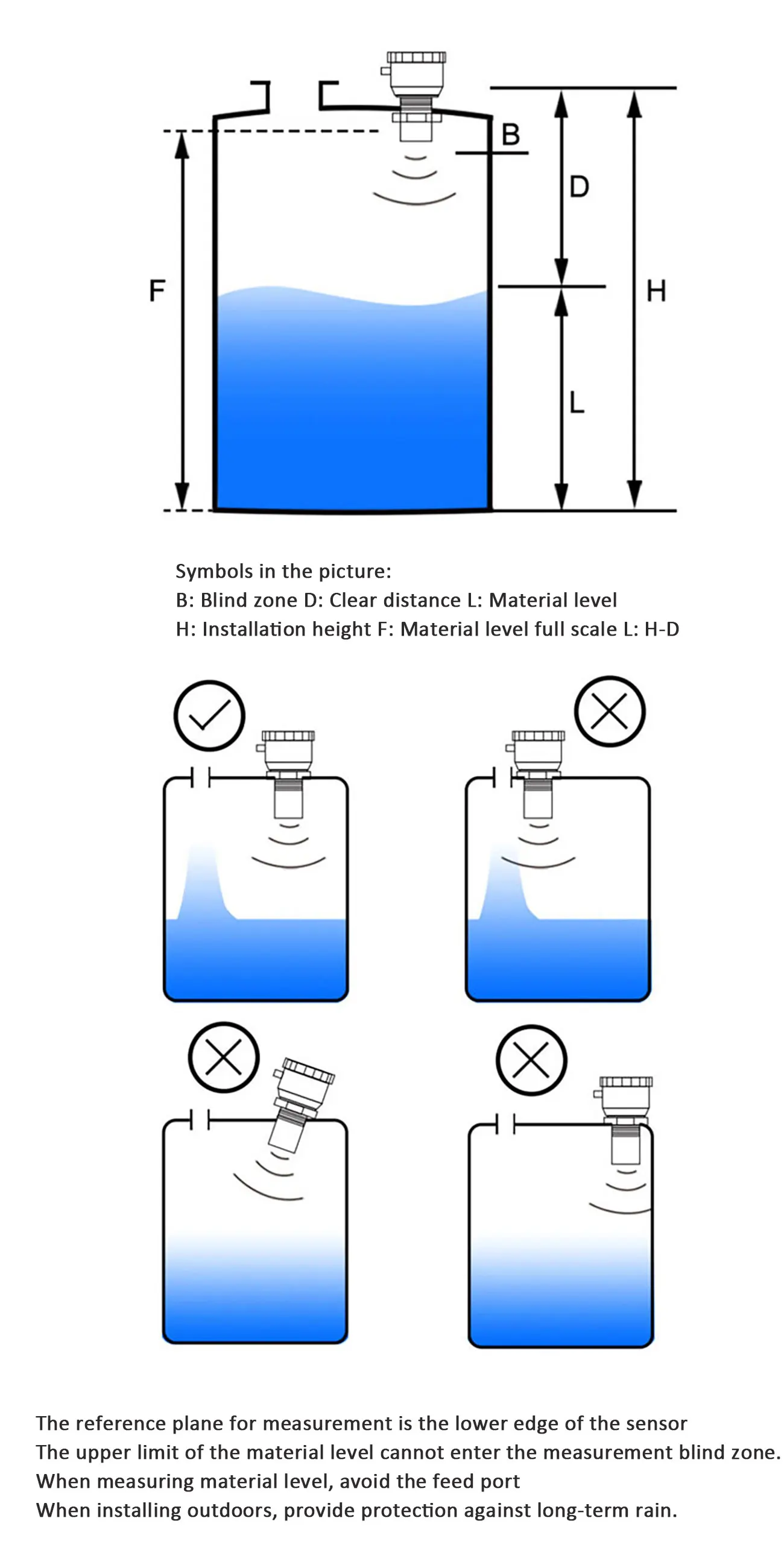

Installation Instructions

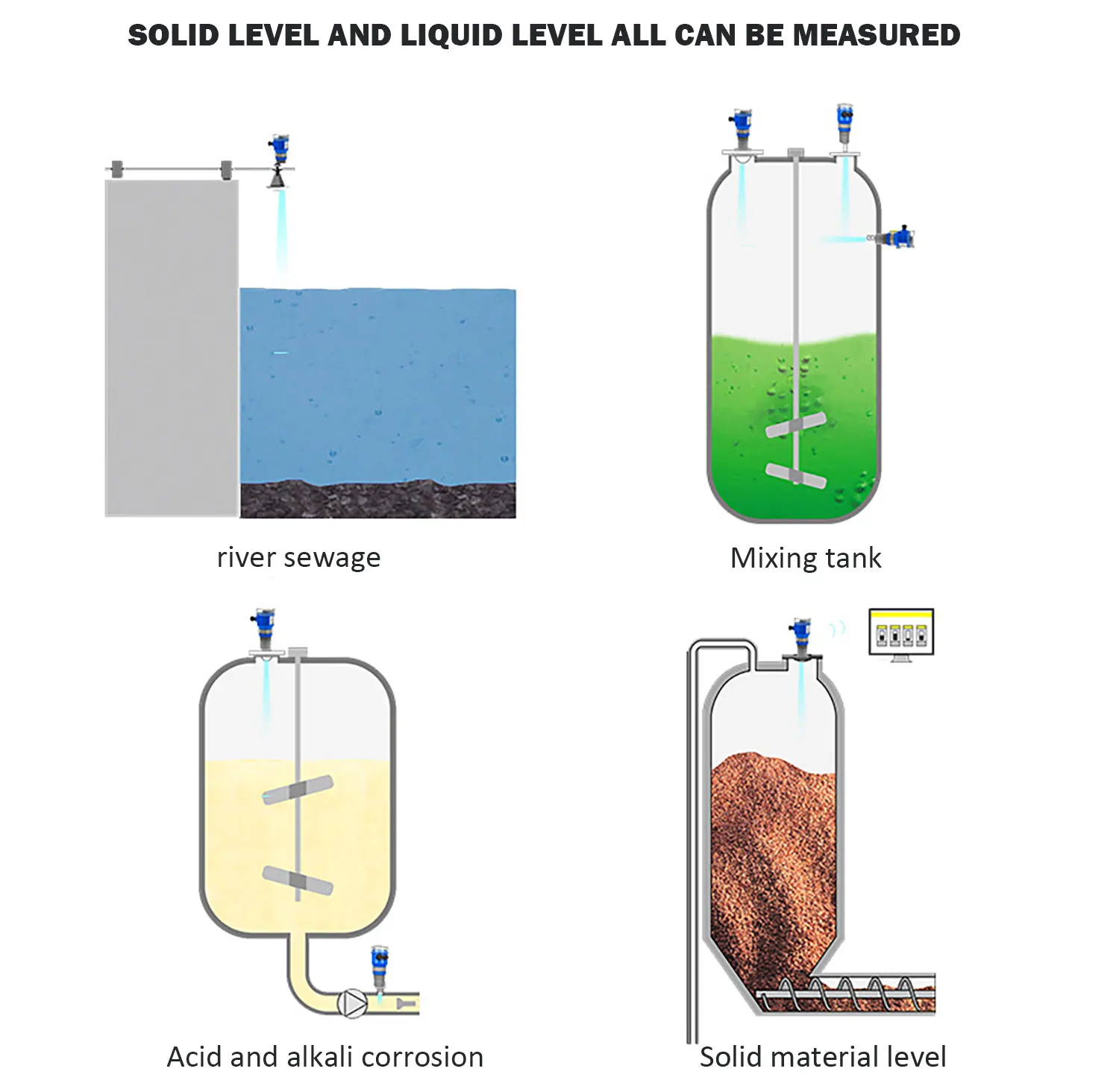

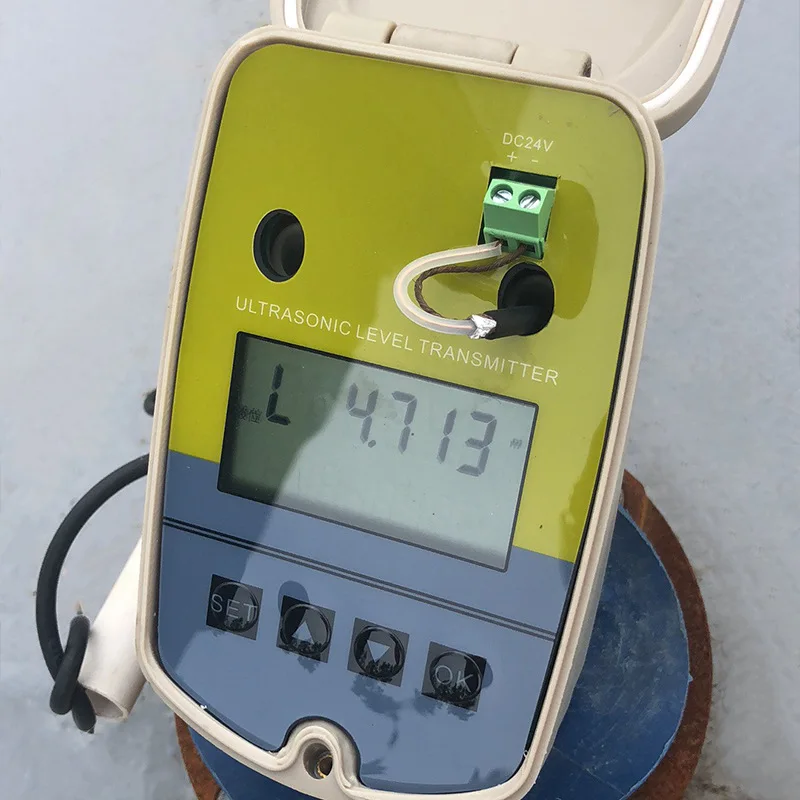

Application
