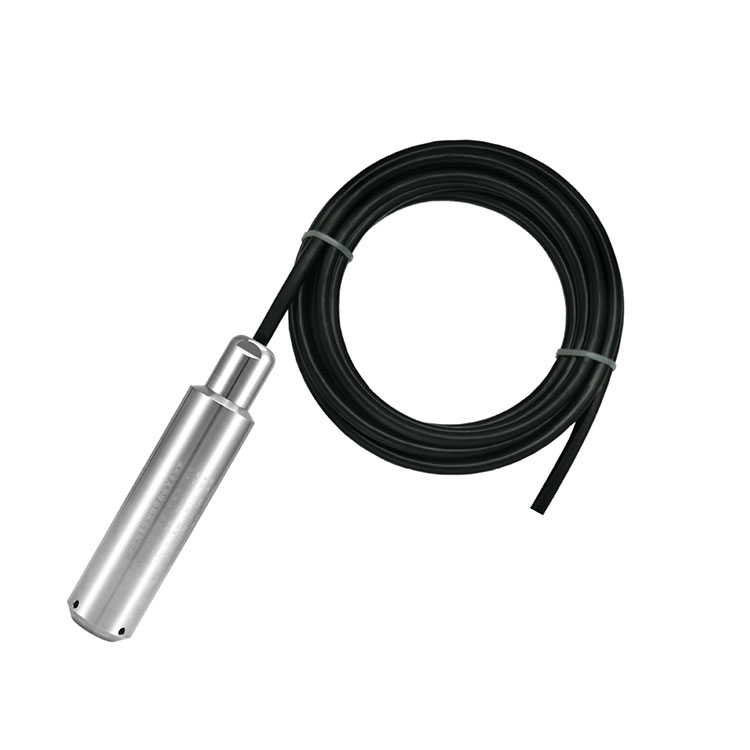

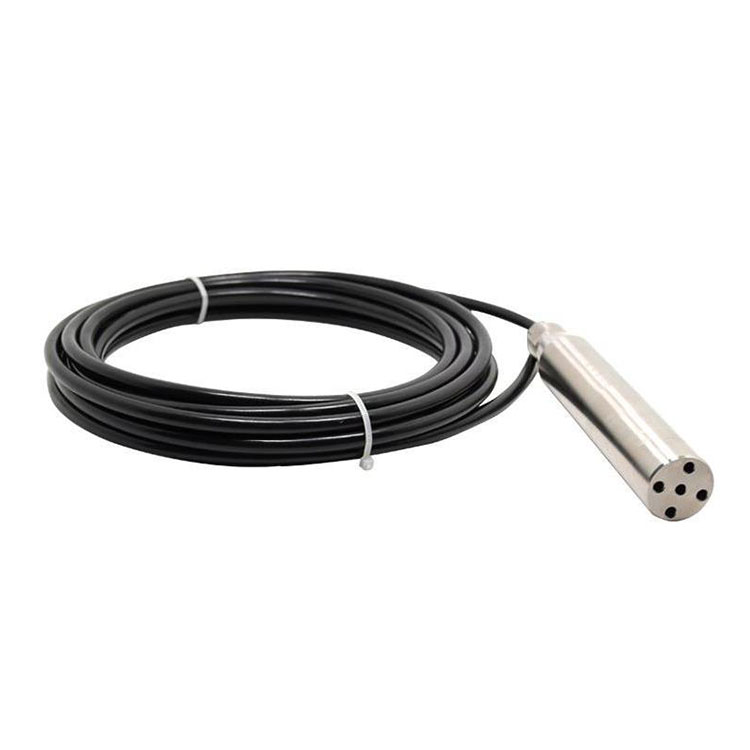

BLS301 Submersible water level sensor

ITEMS

PARAMETER

Range

0m~0.5m...300m

Overload capability

≤ 2 times full scale

Pressure Type

G (gauge pressure), A (absolute pressure)

Accuracy

0.1% (custom), 0.25% (typical), 0.5% (maximum)

Long-term stability

±0.1%FS/year (typical), ±0.2%FS/year (maximum)

Zero temperature drift

±0.01%FS/°C, ±0.02%FS/°C

Sensitivity temperature drift

±0.01%FS/°C, ±0.02%FS/°C

Compensation temperature

0°C~50°C(typical), -10°C~65°C

Medium temperature

-30°C~65°C

Power supply

12 ~ 30VDC

Output Signal

4mA~20mA (superimposable HART protocol)
0V~10V (output range can be customized)
RS485

Load Resistance

Current type: ≤ (U-12) / 0.02 (Ω)

Protection level

IP68
